describe:

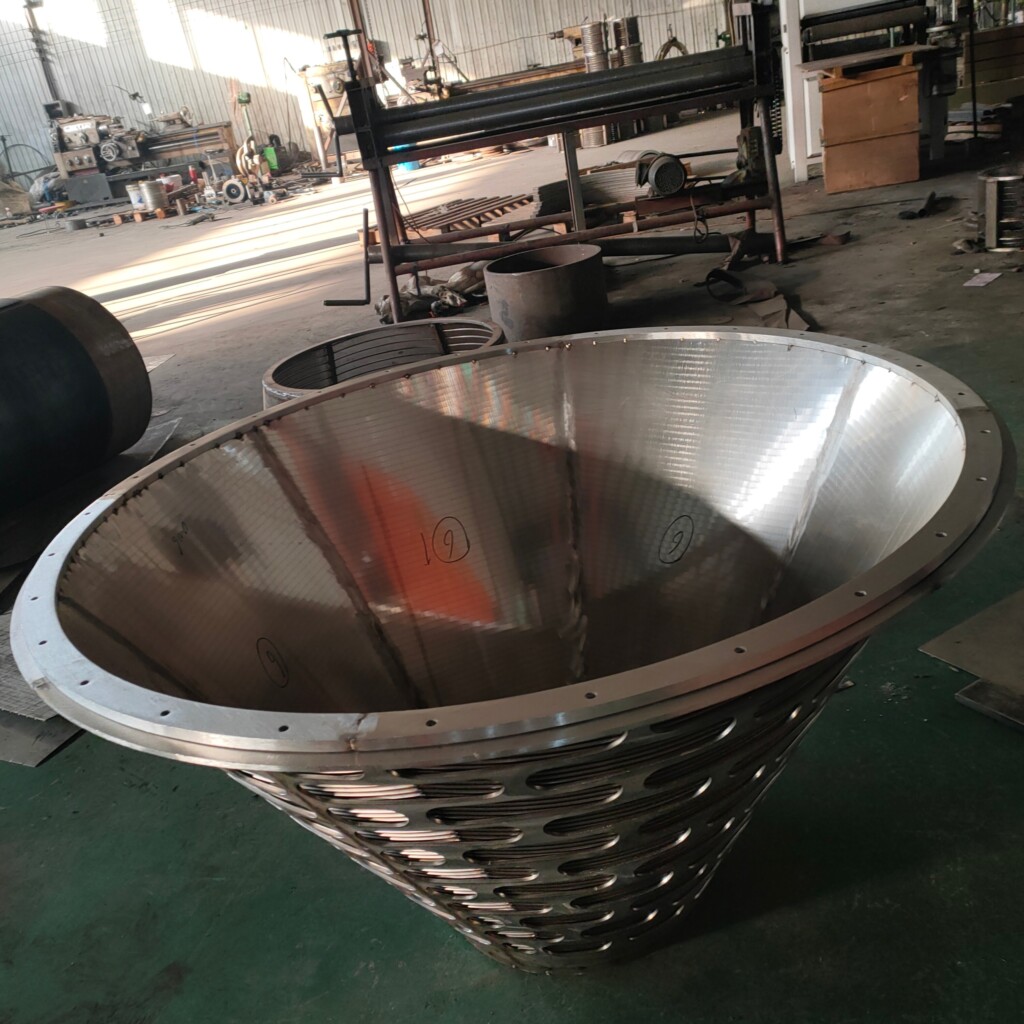

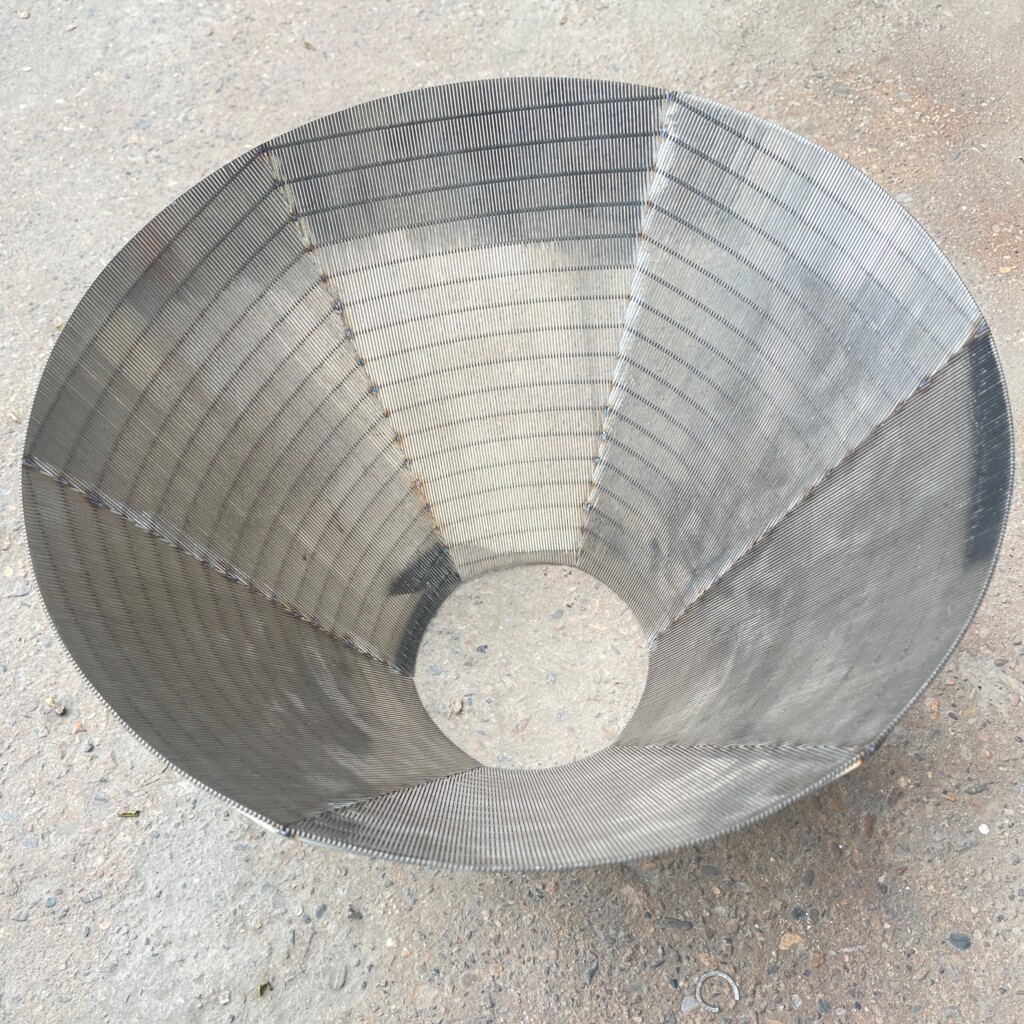

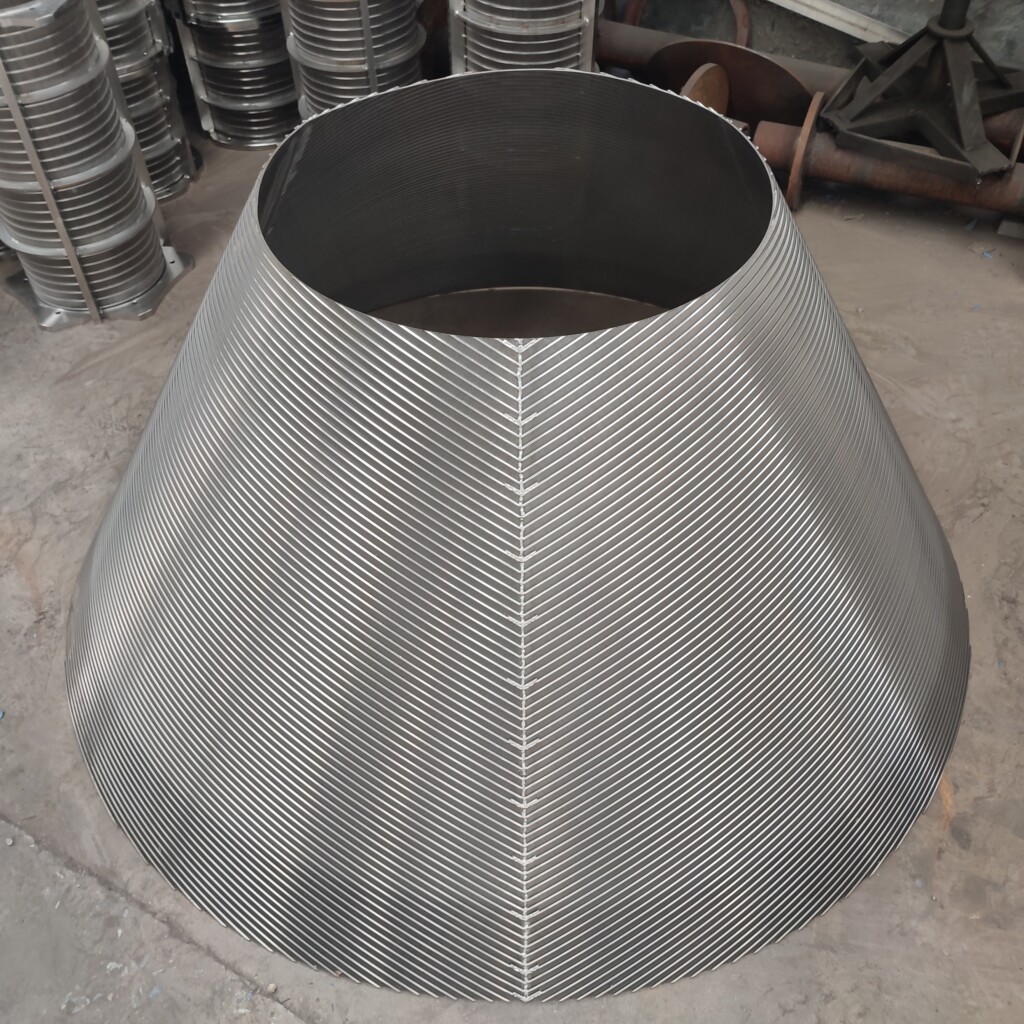

Crafted with precision engineering, conical centrifuge baskets (also referred to as conical baskets) stand as high-performance filtration components designed for industrial separation processes. These baskets are meticulously manufactured by rolling and welding one or more flat wedge wire screens, a process that ensures structural integrity and consistent functionality.

In terms of design versatility, the baskets offer flexible customization to meet diverse customer requirements. Traditionally featuring axial slot directions and FITO filtration flow, they can also be tailored with FOTI filtration directions or radial slots based on specific application needs. Additionally, optional flanges, reinforcement structures, and specialized fittings can be integrated to enhance compatibility with different centrifuge systems, whether for retrofitting existing equipment or equipping new installations.

What sets these conical baskets apart is their superior performance rooted in wedge wire (or V-wire/profile wire) technology. Compared to etched, laser-cut filter media, wire mesh, or perforated metal, they boast exceptional mechanical strength—eliminating the need for additional support screens while withstanding high operational stresses, including intense backwash pressures. The continuous V-wire slots deliver a larger open area, ensuring efficient filtration and dewatering without compromising on durability. Surface wear has minimal impact on slot width, maintaining consistent performance over extended periods, and the unique V-shaped wire design creates two-point contact with particles, significantly reducing clogging and simplifying cleaning processes.

These baskets find prime applications in critical industrial sectors such as starch and sugar processing. In starch refining, they are engineered to match any centrifuge design, offering customized slot sizes starting from 20μm. They outperform nickel screens in fiber dewatering, feature an extended service life, and prevent clogging even with fine starch materials. For sugar processing, the self-supporting structure is built to endure the high stresses and load conditions of the industry, maximizing sugar crystal recovery through precise slot openings and increased open area. They replace electroformed and laser screens with longer wear life, fewer replacements, easy installation, and low maintenance requirements.

Manufactured from a wide range of corrosion-resistant alloys, the baskets are suited for various harsh operating environments. The material selection includes AISI 430, 304, 321, 316L, 316Ti, 2205, and 2507, as well as DIN 2.436 (Monel 400) and 2.4819 (Hastelloy C276), each offering specific resistance to corrosion, temperature, and abrasion. This material flexibility, combined with design adaptability, makes conical centrifuge baskets ideal for a broad spectrum of applications requiring reliable screening, filtering, dewatering, sizing, drying, or cleaning—delivering consistent performance and long-term value across industries.

FAQ

1: What is a conical centrifuge basket, and how is it manufactured?

A conical centrifuge basket is a high-performance filtration component designed for industrial separation, dewatering, and purification processes. It features a tapered (conical) structure that optimizes fluid flow and particle separation in centrifugal equipment.

The manufacturing process involves precision rolling and welding of one or more flat wedge wire (V-wire/profile wire) screens. This construction method ensures structural rigidity and uniform slot distribution. Additionally, the basket can be customized with flanges, reinforcement rings, or specialized fittings to match the mounting requirements of different centrifuge models, whether for new installations or retrofitting existing equipment.

FAQ 2: What slot configurations and filtration directions are available for conical centrifuge baskets?

Conical centrifuge baskets offer flexible design options to suit diverse application needs:

• Slot direction: The standard configuration is axial slots (running parallel to the basket’s central axis). Radial slots (extending from the center to the edge) are also available as a custom option.
• Filtration direction: The conventional flow direction is FITO (From Inside To Outside). For specific process requirements, FOTI (From Outside To Inside) filtration can be tailored to meet customer demands.
• Slot size: Customizable starting from 20μm and above, ensuring precise separation of particles based on the application’s needs (e.g., fine starch or sugar crystal recovery).

FAQ 3: What advantages do conical centrifuge baskets have over traditional filter media like etched screens or wire mesh?

Compared to etched screens, laser-cut media, wire mesh, or perforated metal, conical centrifuge baskets offer multiple key advantages:

• Superior strength: The wedge wire construction provides exceptional mechanical strength, eliminating the need for additional support screens while withstanding high centrifugal forces, backwash pressures, and operational stresses.
• Larger open area: Continuous V-wire slots deliver a higher open area, enhancing filtration efficiency and reducing pressure drop during operation.
• Anti-clogging performance: The V-shaped wire design creates two-point contact with particles, minimizing adhesion and clogging. The smooth surface also simplifies cleaning and maintenance.
• Durability: Surface wear has minimal impact on slot width, ensuring consistent performance over an extended service life. This reduces replacement frequency and downtime costs.
• Design flexibility: Fully customizable in size, slot configuration, and material to match specific centrifuge designs and process requirements.

FAQ 4: Which industries and applications are conical centrifuge baskets most suitable for?

Conical centrifuge baskets are widely used in industries requiring efficient separation, dewatering, or purification, with core applications in:

• Starch processing: Engineered to fit any centrifuge model, these baskets improve starch refining by offering customized slot sizes. They outperform nickel screens in fiber dewatering, prevent clogging with fine V-wire construction, and withstand high backwash pressures.
• Sugar processing: The self-supporting structure endures the high stresses and loads of sugar production. Precise slot openings and large open areas maximize sugar crystal recovery. They are direct replacements for electroformed and laser screens, featuring easy installation, low maintenance, and high abrasion resistance.
• Other applications: Suitable for various industrial processes requiring screening, filtering, dewatering, sizing, drying, or cleaning—thanks to their corrosion resistance, durability, and customizable design.

FAQ 5: What materials are conical centrifuge baskets made of, and how to choose the right one?

Conical centrifuge baskets are manufactured from high-quality corrosion-resistant alloys to adapt to different operating environments. Common materials include:

• Standard stainless steels: AISI 430 (DIN 1.4016), 304 (DIN 1.4301/UNS S30400), 321 (DIN 1.4541/UNS S32100), 316L (DIN 1.4404/UNS S31603), 316Ti (DIN 1.4571)
• Special alloys: DIN 2.436 (UNS N04400/Monel 400), DIN 2.4819 (UNS N10276/Hastelloy C276)
• Super duplex steels: AISI 2205, 2507

Material selection guide:

• Choose 304 or 321 stainless steel for general food-grade applications (e.g., starch, sugar) with mild corrosion and moderate temperatures.
• Opt for 316L or 316Ti for environments with strong corrosion (e.g., chloride-containing media) or higher humidity.
• Select Monel 400 or Hastelloy C276 for extreme chemical corrosion (e.g., strong acids, alkalis) in chemical processing or harsh industrial settings.
• Use super duplex steels (2205, 2507) for high-pressure, high-corrosion conditions requiring both strength and corrosion resistance.

FAQ 6: How to maintain conical centrifuge baskets to extend their service life?

To ensure optimal performance and longevity of conical centrifuge baskets, follow these maintenance tips:

• Regular cleaning: Leverage the basket’s easy-to-clean design by performing routine flushing (with water or compatible cleaning agents) to remove residual particles and prevent clogging. Avoid abrasive cleaners that may damage the V-wire surface.
• Inspection: Periodically check for signs of wear, deformation, or weld damage—especially after high-load operations. Address minor issues promptly to prevent further deterioration.
• Proper installation: Ensure correct alignment and mounting to avoid uneven stress distribution during centrifugal operation, which can cause premature wear.
• Material compatibility: Use the basket with fluids and particles compatible with its alloy material to prevent chemical corrosion.
• Controlled operation: Avoid exceeding the basket’s recommended temperature, pressure, or speed limits specified by the manufacturer.
